RacingLine Twin Dogbone Mount Inserts (MQB / MQB Evo)

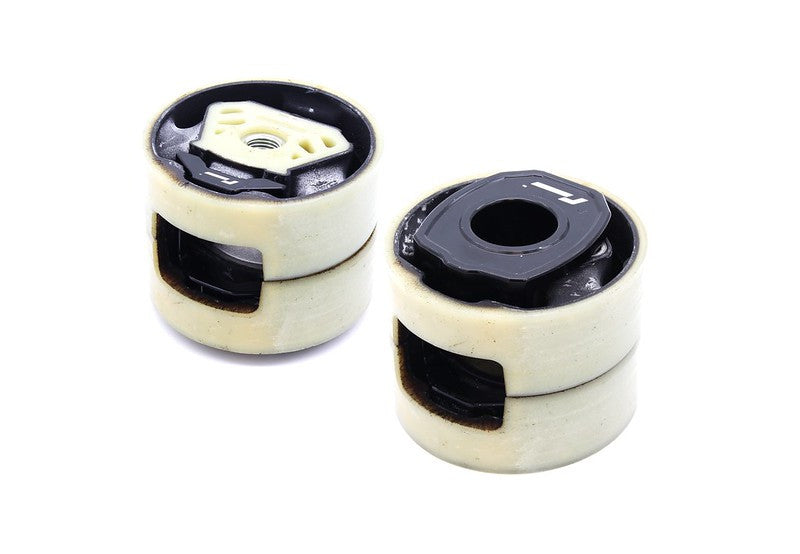

The RacingLine Twin Dogbone Insert limits the compliance of the lower engine mount by filling the large voids with our two Billet Inserts.
All of the foreward/backwards rocking movement in your drivetrain is controlled by this Lower Mount – fitment of the RacingLine Twin Dogbone Insert adds strength to the drivetrain, helping to protect from future wear and breakages.
The Twin Dogbone Insert uses not one but two precision machined billet inserts to avoid the damaging bending moment that comes from fitment of a single insert. Many companies offer either the upper or the lower mount insert alone - we advise very strongly against fitting just a single insert. With a single insert, the twisting moment force on the mount becomes significant, leading to almost-certain failure. That’s why RacingLine only offer the Twin Dogbone Insert, keeping the forces balanced top and bottom through the mount and remove the risk of twisting forces destroying your insert.
The risk of wheel-hop under hard acceleration is almost eliminated as the whole engine and 'box assembly is firmly prevented from juddering when wheelspin occurs and through aggressive gearchanges - especially valuable on FWD cars.
Fitment of the Twin Inserts will only add a minimal NVH increase to the car’s characteristics, but most keen drivers love the sense that they are more 'connected' to their car, and the gentle 'growl' that the mount conveys.

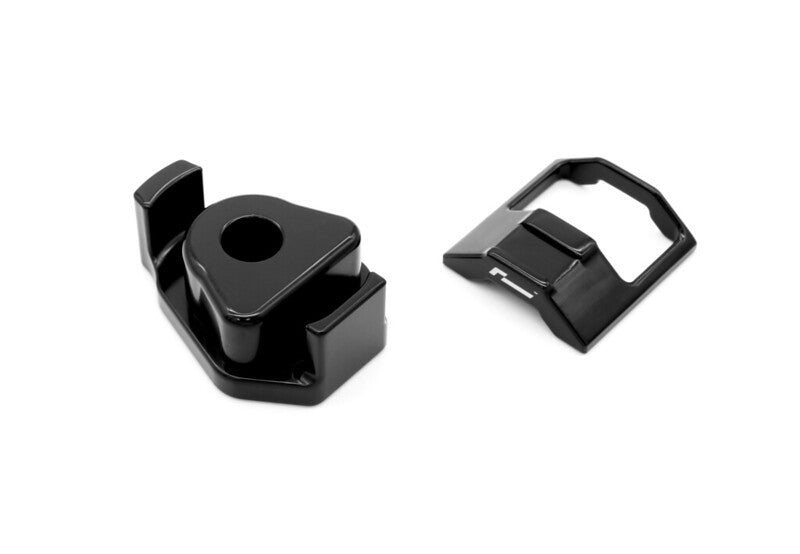

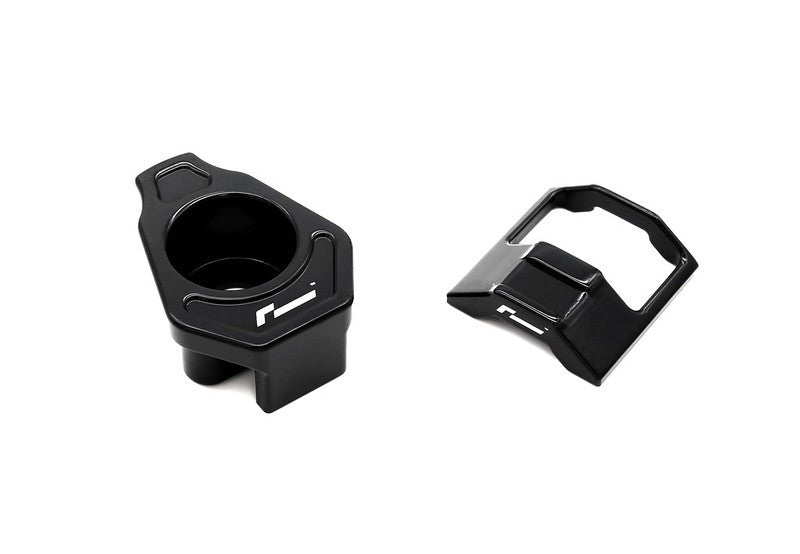

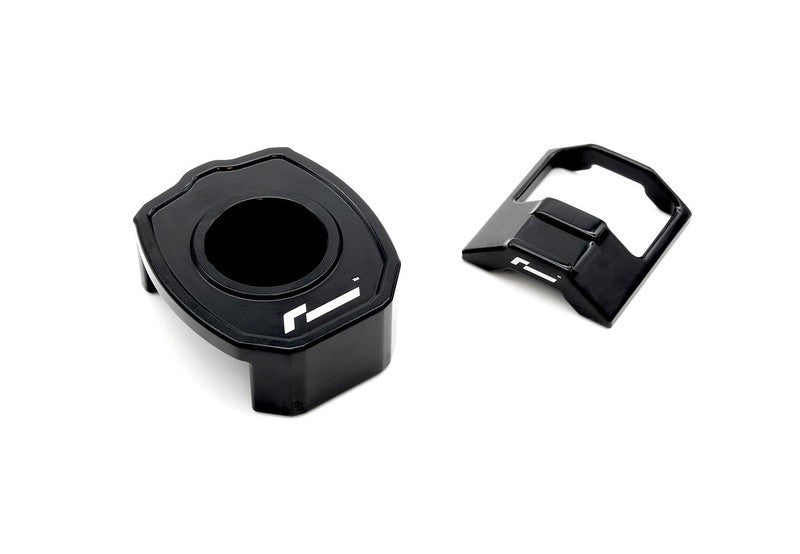

Each Twin Dogbone Insert start life as a billet of T6061 Aluminium, before being precision CNC-machined into shape. Finished in RacingLine’s trademark black anodised finish for durability over many years. Easy, straightforward installation designed to be fitted without subframe removal means it just takes minutes.
Why not just fit one of the two inserts?
After all, many companies offer either the upper or the lower mount insert alone.
RacingLine strongly advise against fitting just one insert. With a single insert, the twisting moment force on the mount becomes significant, leading to almost-certain failure.
That’s why RacingLine only offer the Twin Dogbone Insert, with two billet inserts to keep the forces balanced top and bottom through the mount and remove the risk of twisting forces destroying your insert.

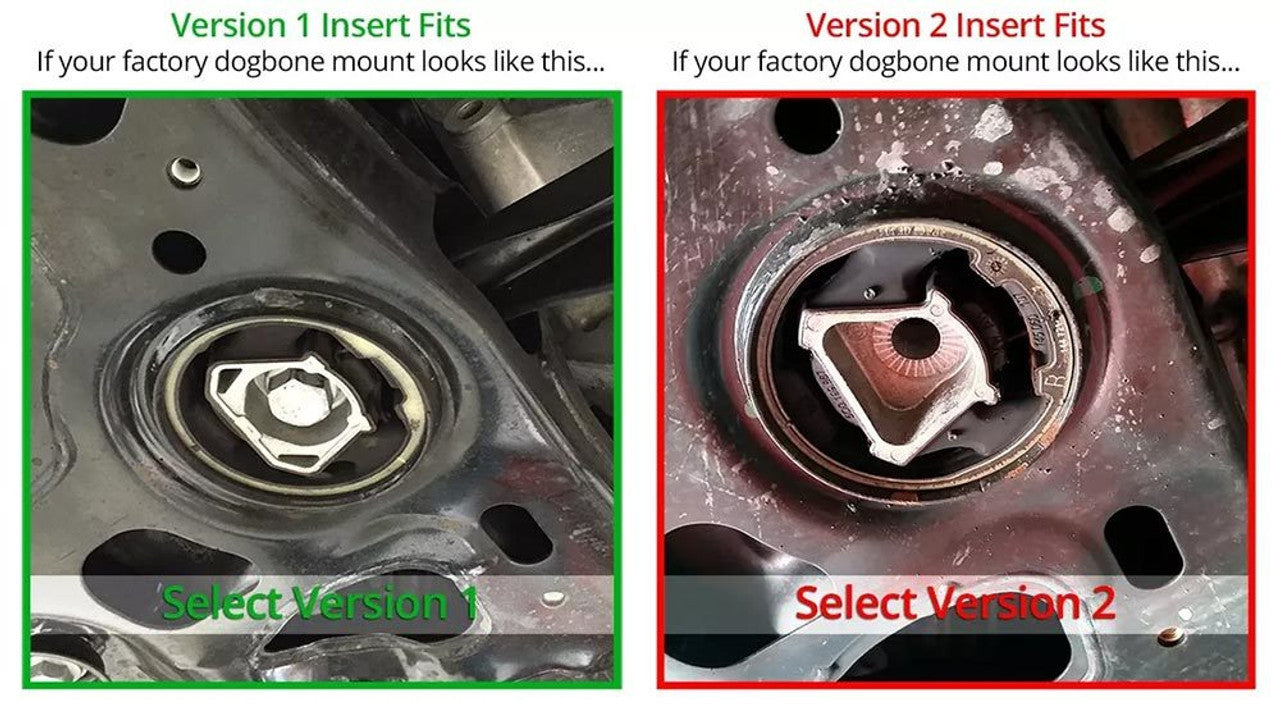

Version 1 - This is compatible with OE Bushing Part no# 5Q0 198 037 A
Version 2 - This is compatible with OE Bushing Part no# 5Q0 198 037 F
