Racingline Performance Intercooler System - Audi RS3 8V / RS3 8Y / TT RS 8S

Racingline Performance Intercooler System - Audi RS3 8V / RS3 8Y / TT RS 8S

£999.60 GBP
£999.60 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
NEXT DAY AVAILABLE
COLLECT IN STORE
INSTALLATION KIT REQUIRED?
ASK A QUESTION
INSTALL ENQUIRY

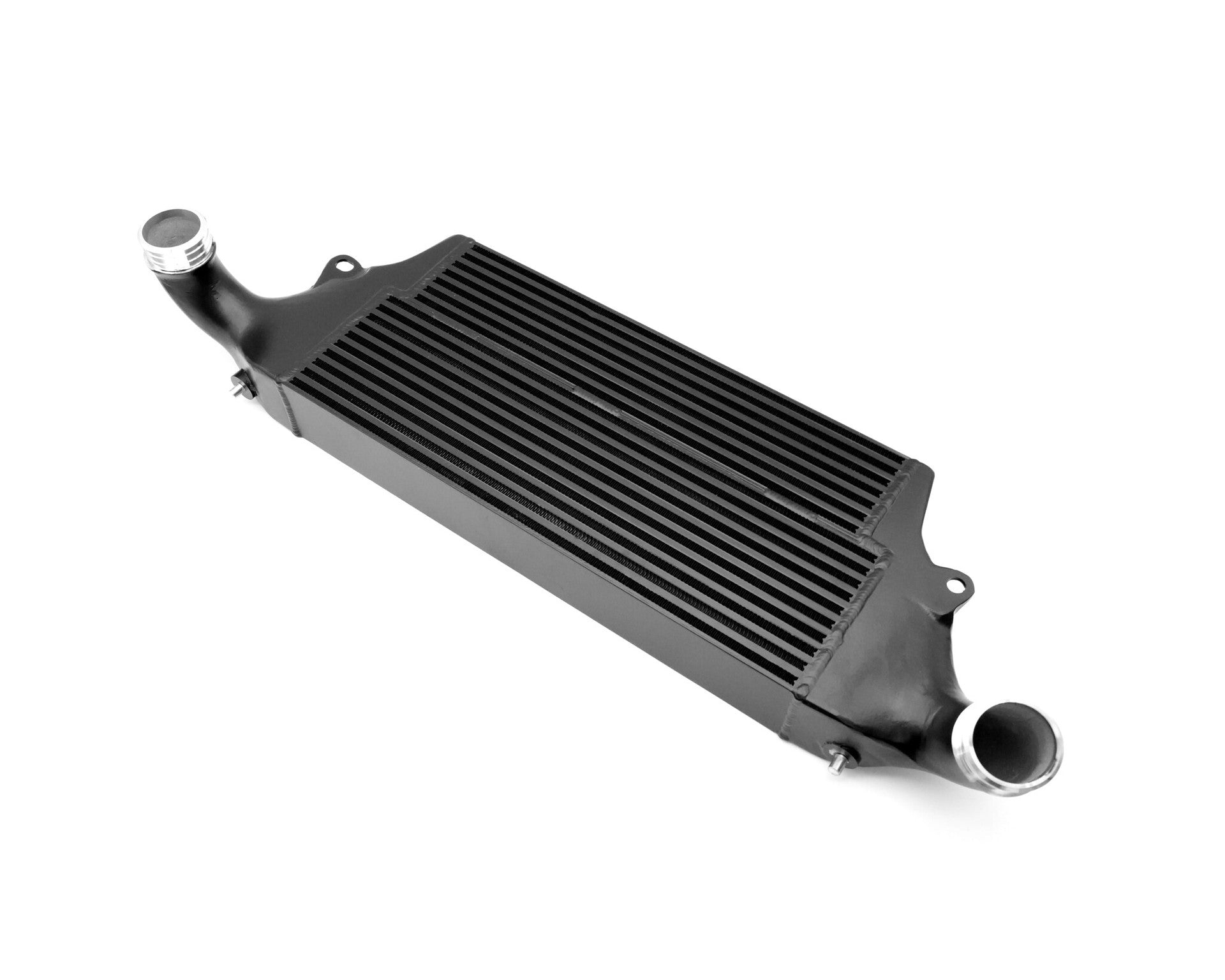

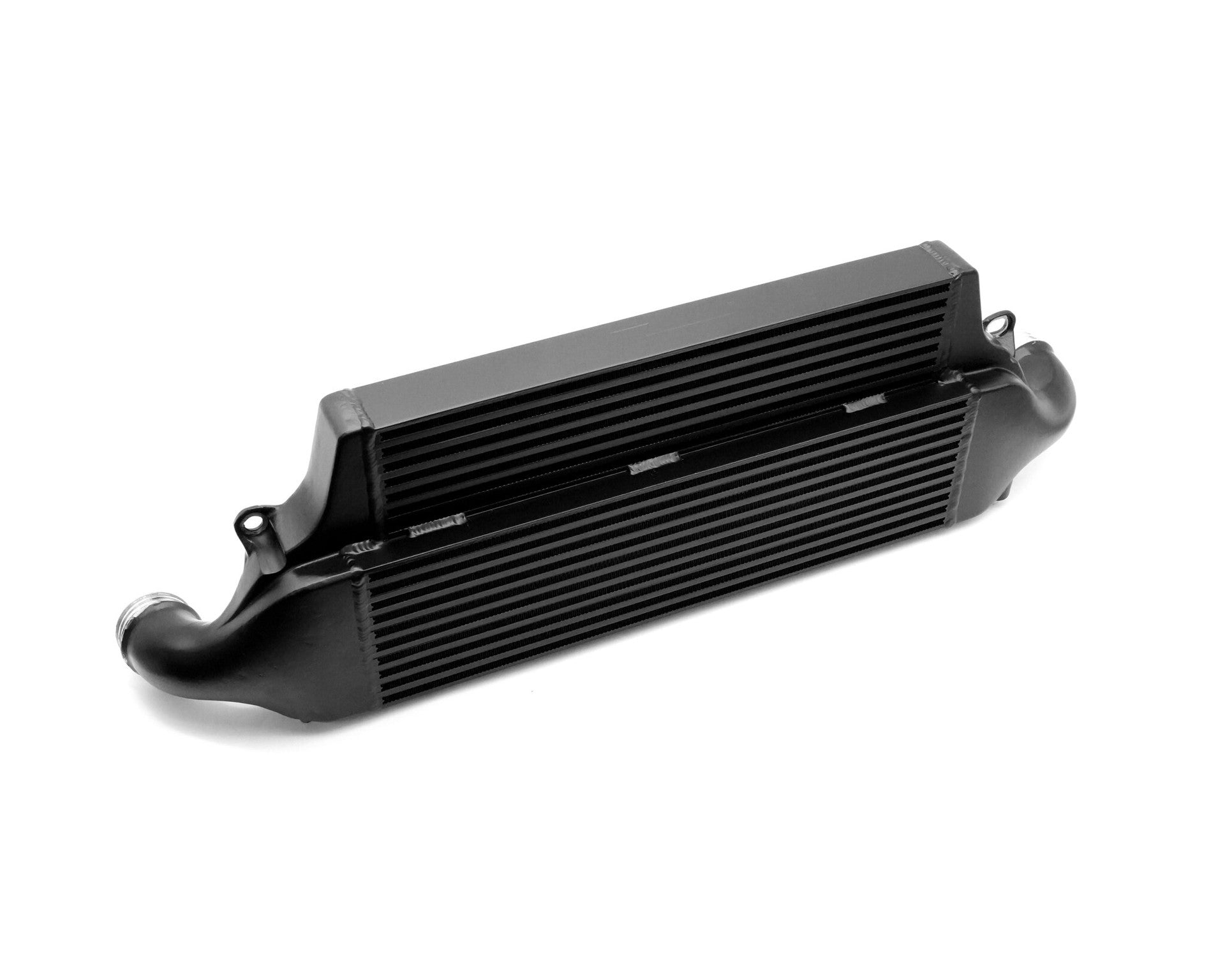

RacingLine Performance Intercooler System – MQB 2.5 TFSI

Upgrade the cooling performance of your Audi RS3 or TTRS with the RacingLine High Performance Plate & Bar Intercooler, specifically engineered for the 2.5 TFSI EA855 platform.

The factory intercooler on these 2.5 TFSI models can struggle to maintain consistent intake temperatures when subjected to increased power and sustained hard driving. As temperatures rise, heat soak can lead to reduced performance and power losses.

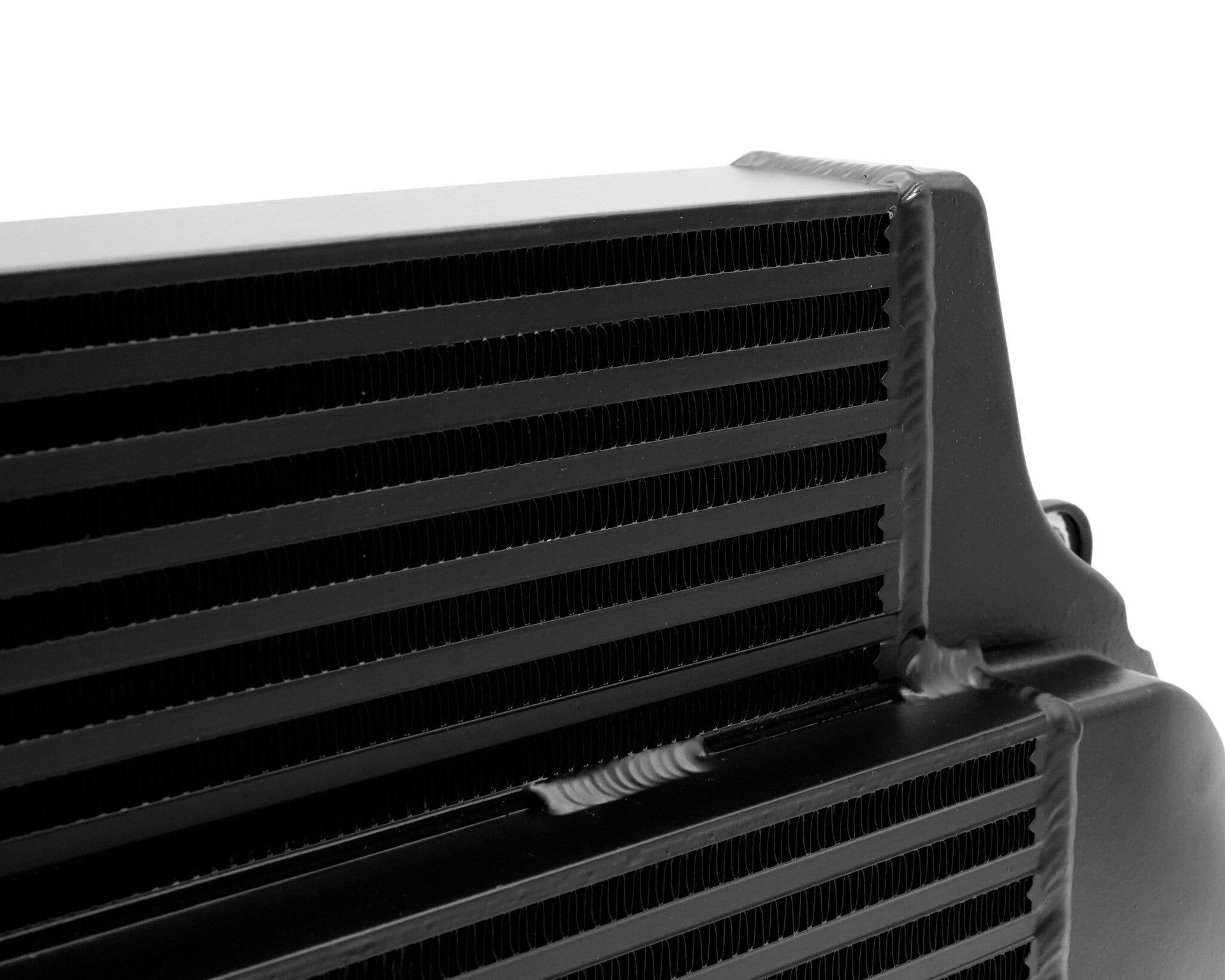

RacingLine’s upgraded intercooler features a large stepped Plate & Bar core, providing a substantial 77% increase in frontal area compared with the factory unit. Carefully engineered internal flow guides distribute airflow efficiently through both the upper and lower sections of the core, while the high-speed internal fin design and taller tubes allow excellent boost airflow with minimal restriction.

The intercooler has been specifically designed for the Audi RS3 8V.2, RS3 8Y and TTRS 8S, allowing a straightforward installation without cutting or drilling. It also retains compatibility with the factory front crash bar.

RacingLine focused development on achieving the ideal balance between maximum intake air temperature reduction and minimal pressure loss. The cast end tanks help reduce turbulence and restriction, allowing air to flow efficiently across the entire stepped core. The result is a 69.5% increase in core volume over the OEM intercooler without introducing the excessive turbo lag that can sometimes occur with oversized intercoolers.

The intercooler features 70mm outlets, allowing the factory boost pipes to remain in place. For those looking to maximise airflow further, RacingLine’s upgraded boost pipe kit can be paired with the intercooler.

By keeping intake air temperatures consistently lower, this intercooler helps reduce heat soak and maintain reliable performance during repeated hard driving. Unlike the factory cooler, it significantly reduces the need for cooldown periods between runs.

This race-developed intercooler is an ideal upgrade for Audi RS3 and TTRS models across all stages of tuning, particularly those running increased power on the 2.5 TFSI EA855 engine.

FEATURES:

  • High-performance Plate & Bar intercooler design

  • 77% larger frontal area compared with the factory intercooler

  • 69.5% greater core volume than OEM

  • Optimised internal flow guides

  • High-speed core design with extra-tall internal tubes

  • Cast end tanks for improved airflow and reduced turbulence

  • Designed to minimise pressure loss

  • Helps reduce intake air temperatures and heat soak

  • Maintains consistent performance during hard driving

  • Designed to minimise additional turbo lag

  • 70mm intercooler outlets

  • Compatible with OEM boost pipes

  • Compatible with RacingLine upgraded boost pipe kit

  • Direct-fit design with no cutting or drilling required

  • Retains the factory front crash bar

  • Suitable for street, fast-road and track applications

FITMENT:

  • Audi RS3 8V.2

  • Audi RS3 8Y

  • Audi TTRS 8S

ENGINE:

  • 2.5 TFSI EA855

  • 400 PS applications

  • Engine Codes: DAZA, DAZC, DNWA, DXHA

Some images may be for illustration purposes only.

Product Specs

Shipping: Calculated at Checkout

SKU: VWR143000

Quickcode: VWR143000

Brand: RacingLine Performance

Models: RS3 8V, RS3 8Y, TT RS 8S

Part: Engine

SubPart: Intercoolers

View full details
×

Next Day delivery (1-2 days)

Next Working day delivery are sent by DPD Courier company for main land UK deliveries which is normally next working day (which does not include Saturday/Sunday or Bank Holidays).

Orders need to be placed before 3pm to qualify for next working day delivery.

We also offer a 2-3 working day service by Royal Mail (Priced at £5.99) as well.

Northern Ireland, the Isles and some Scottish postcodes are charged more and delivery could take longer.

×

Collect in Store

Please call us to check the availability of the item you wish to purchase as some items are directly shipped from our warehouse and not available for collection instore.

Please bring a printout of the item required.

×

What parts are required to fit this product in your vehicle

×

Ask a Question About This Product

×

What parts are required to fit this product in your vehicle

RacingLine Performance Intercooler System – MQB 2.5 TFSI

Upgrade the cooling performance of your Audi RS3 or TTRS with the RacingLine High Performance Plate & Bar Intercooler, specifically engineered for the 2.5 TFSI EA855 platform.

The factory intercooler on these 2.5 TFSI models can struggle to maintain consistent intake temperatures when subjected to increased power and sustained hard driving. As temperatures rise, heat soak can lead to reduced performance and power losses.

RacingLine’s upgraded intercooler features a large stepped Plate & Bar core, providing a substantial 77% increase in frontal area compared with the factory unit. Carefully engineered internal flow guides distribute airflow efficiently through both the upper and lower sections of the core, while the high-speed internal fin design and taller tubes allow excellent boost airflow with minimal restriction.

The intercooler has been specifically designed for the Audi RS3 8V.2, RS3 8Y and TTRS 8S, allowing a straightforward installation without cutting or drilling. It also retains compatibility with the factory front crash bar.

RacingLine focused development on achieving the ideal balance between maximum intake air temperature reduction and minimal pressure loss. The cast end tanks help reduce turbulence and restriction, allowing air to flow efficiently across the entire stepped core. The result is a 69.5% increase in core volume over the OEM intercooler without introducing the excessive turbo lag that can sometimes occur with oversized intercoolers.

The intercooler features 70mm outlets, allowing the factory boost pipes to remain in place. For those looking to maximise airflow further, RacingLine’s upgraded boost pipe kit can be paired with the intercooler.

By keeping intake air temperatures consistently lower, this intercooler helps reduce heat soak and maintain reliable performance during repeated hard driving. Unlike the factory cooler, it significantly reduces the need for cooldown periods between runs.

This race-developed intercooler is an ideal upgrade for Audi RS3 and TTRS models across all stages of tuning, particularly those running increased power on the 2.5 TFSI EA855 engine.

FEATURES:

  • High-performance Plate & Bar intercooler design

  • 77% larger frontal area compared with the factory intercooler

  • 69.5% greater core volume than OEM

  • Optimised internal flow guides

  • High-speed core design with extra-tall internal tubes

  • Cast end tanks for improved airflow and reduced turbulence

  • Designed to minimise pressure loss

  • Helps reduce intake air temperatures and heat soak

  • Maintains consistent performance during hard driving

  • Designed to minimise additional turbo lag

  • 70mm intercooler outlets

  • Compatible with OEM boost pipes

  • Compatible with RacingLine upgraded boost pipe kit

  • Direct-fit design with no cutting or drilling required

  • Retains the factory front crash bar

  • Suitable for street, fast-road and track applications

FITMENT:

  • Audi RS3 8V.2

  • Audi RS3 8Y

  • Audi TTRS 8S

ENGINE:

  • 2.5 TFSI EA855

  • 400 PS applications

  • Engine Codes: DAZA, DAZC, DNWA, DXHA

Some images may be for illustration purposes only.

Product Specs

Shipping: Calculated at Checkout

SKU: VWR143000

Quickcode: VWR143000

Brand: RacingLine Performance

Models: RS3 8V, RS3 8Y, TT RS 8S

Part: Engine

SubPart: Intercoolers
